STANDARD EQUIPMENTS

  • Magnetic switch .
  • 1" width saw blade.

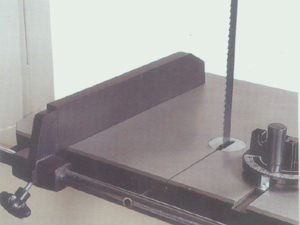

  • Adjustable rip fance.

FEATURES

  • Cast aluminium wheels are equipped with vulcanized rubber rites and are precisely balanced for smooth and accurate cutting.
  • Sealed long life ball bearing
  • Excellent cutting power for wood or similar meterials.
  • Safety precision ground cast iron table.
  • Aluminium rip fence with scale rail.
  • Magnentic control for overload protection.
SPECIFICATIONS
SK-20BS
Wheel diameter
20" / 508mm
Max. depth of cut
11" / 280mm
Max. width of cut
8" / 203mm
Length of saw blade
155-1/8" / 3,940mm
Wheel speed
800 RPM
Motor
2HP / 1.5kw
Table size
20-1/2" X 23" / 520mm X 584mm
Table tilting
45 degree
Net weight
620 lbs / 282kgs
Gross weight
816 lbs / 370kgs
Overall dimensions
38" X 26" X 74" / 965mm X 660mm X 1,880mm
Packing dimensions
80" X 29" X 42" / 2,032 X 737mm X 1,067mm
