Download full line catalog for accerssories.
19" Filter Cartridge SPECIFICATIONS
Diameter 48cm (19")
High 66cm (26")
Fold deep of paper 2.5cm (1")
Number of fold 125
Material NW (Polyester) 3u 99.4%
Canister area 45,540cm^2 (7160 in^2) / PC
Packing list 53.5cm X 53.5cm X 76cm (21" X 21" X 30")
Net weight 25kg (11.5 lbs)
Gross weight 28kg (13 lbs)
USE FOR UFO-902 / 101 / 101D / 102B / 103M / 105D
13" Filter Cartridge SPECIFICATIONS
Model DC-13C
Cartridge Diameter 343mm (13-1/2")
Height 660mm (26")
Depth of Dach Pleat 25.4mm (1")
Composition Polyster
Smallest Particle Size Filtered 1 micron
Filtering Area 11,456 Sq.In.
Weight 6.5kg (14 lbs)
USE FOR UFO- 70 / 70F / 90
Elbow
  • SK-1016EL 75mm (3")
  • SK-1017EL 100mm (4")
Flexible Hose (max. length/30m (100ft)
  • SK-300H 75mm (3")
  • SK-400H 100mm (4")
  • SK-500H 125mm (5")
  • SK-600H 150mm (6")
Floor Sweep
  • SK-1003FS 540mm X 100mm (21" X 4")
Hose Clamp
  • SK-102CL 50mm (2")
  • SK-103CL 75mm (3")
  • SK-104CL 100mm (4")
  • SK-105CL 125mm (5")
  • SK-106CL 150mm (6")
Jointer Dust Hood
  • SK-1001DH 6-1/2" X 4"
  • SK-1002DH 8-1/2" X 4"
Plastic Blast Gate
  • SK-1006BG 75mm (3")
  • SK-1007BG 100mm (4")
  • SK-1008BG 125mm (5")
  • SK-1009BG 150mm (6")
Reducer
  • SK-1024RE 75mm X 50mm (3" X 2")
  • SK-1032RE 100mm X 50mm (4" X 2")
  • SK-1011RE 100mm X 75mm (4" X 3")
  • SK-1027RE 125mm X 100mm (5" X 4")
Splice
  • SK-1018SP 75mm (3")
  • SK-1019SP 100mm (4")
Table Saw Dust Hood
  • SK-1004DH 12" X 12" X 4"
  • SK-1005DH 14" X 14" X 4"
Tee
  • SK-1012T 75mm (3")
  • SK-1013T 100mm (4")
Universal Dust Hood
  • SK-1010DH 6" X 6" X 4"



Y Fitting
  • SK-1014Y 75mm (3")
  • SK-1015Y 100mm (4")

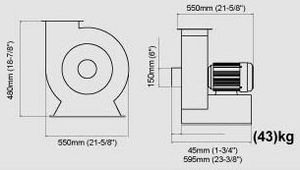

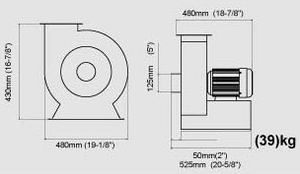

UFO-101BD / 102BD
SPECIFICATIONS UFO-101BD UFO-102BD
Motor 2HP 3HP
Inlet diameter 5" 6"
Air volume 1538CFM 2231CFM
Packing 30" X 22" X 20" 26-1/4" X 24-1/2" X 21-3/4"
Net weight 86 lbs 95 lbs
Gross weight 90 lbs 99 lbs
