Automatic Programable
Cut-Off Saw S-450 & S-600 |
|
|
FEATURES
- Employs an advanced serbvo control system. The machine
performs defective part cutting and fixed size cuting for meeting various
cutting requirement.
- Fast processing speed. High stability and cutting
accuracy to +/- 1mm, solving tough cutting problems.
- Ideal for finger jointing material and mass material
preparation.
- Minimum size of stock: 300 X 30 X 10mm
- Automatic trimming of head piece. ( Not available
in marking lines cutting mode )
- AUTOMATIC POSITION SYSTEM
The fast moving pusher reaches a maximum distance of 60m/min with perfect
position.
- Optional Equipment:
AUTO TRACER
A fluorescent pen is used to mark off unwanted marks on the material
which is later cut off with the aid of sensor.
|

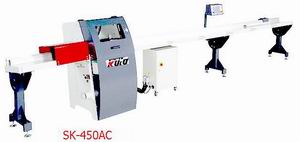

| MODEL |
SK
- 450AC |
| Saw spindle speed |
3600 RPM |
| Circular saw diameter |
450mm , 600mm ( 18" , 24"
)X 3.4mm X 1" X 120T |
| Saw motor |
7.5kw (10 HP) |
| Feeding speed |
1.5m -58.8m (50 - 196 ft) /min |
| Height of bed |
890mm (35 inch) |
| Air pressure |
5kgs - 7kgs (11 - 15.4 lbs) /
80cm^2 |
| Feeding Table 3M ~ 7.5M ( optional
) |
|
|
