SK-250TS-A

SK-315TS

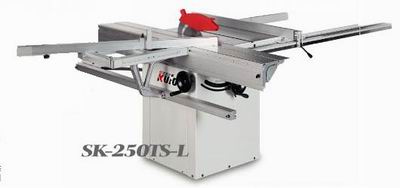

SPECIFICATIONS SK-250TS-L
Saw blade diameter 10"
Scoring saw blade diameter 3-1/2"
Motor

3HP

Arbor diameter-main saw blade 1" or 5/8"
Arbor diameter-scoring saw blade 30mm
Arbor speed-50HZ 4275 RPM
Arbor speed-60HZ 5130 RPM
Maximum cut depth at 90 degree 3-3/8"
Maximum cut depth at 45degree 2-1/8"
Maximum cross cut with sliding table 36"
Maximum rip right of blade 50"
Maximum rip left of blade without sliding table 33-7/32"
Length of sliding table 70-7/8"
Length of fence on sliding table (extendable) 48" to 88"
Table height 34-1/4"
Table size 30-9/16" X 30"
Diameter of dust outlet 4"
Diameter of dust outlet on blade guard 1-1/2"
Packing size list
The machine-woodcase 46" X 42" X 45"
The sliding table-carton 74" X 18" X 8"
Extension table (Rail) 64" X 4" 4"

FEATURES

  • Large, accurate and easy installation sliding tble makes precision cutting possible.
  • Scoring blade eliminates all tearout on laminated plywood and other lumber coring it first.
  • Convenient, quick release fence.
  • Powerful motor with aluminium housing enables heat to exhale efficiently.
  • Finish ground, heavy-duty cast iron table with T-style mitre gauge slots.
  • Extension panel at the back and both sides provide larger table surfaces.
  • Blade guard with dust collection outlet to eliminate saw just more efficiently.
  • Extruded aluminum front guide rail allows 21" rip to the right and 19" to the left.
  • 4" dust hood.
  • Steel constructed cabinet for durability and stablitity.
  • Sliding table comes with precision fence with lens magnifier
  • 52" extension table. (Standard)
  • Easy to change any type of KUFO sliding tables.
