SPECIFICATIONS
SK-28SP
Motor
2.25kW (3HP)
Spindle diameter
30mm or 1"
Vertical travel of spindle
70mm(2-3/4")
Maximum depth of cutter
70mm(2-3/4")
Spindle speed
3000/6250/9000rpm
Rotation
Forward and Reverse
Tilting
30 degrees
Table size
680mm x 590mm(26-3/4" x 23-1/4")
Table height
840mm(33-1/8")
Table opening diameter
145mm (5-3/4")
Table insert ring opening diameter
105mm ( 4-1/3")
Fence size
330mm x 127mm(13" x 5") x 2
Left side fence adjustment
10mm(3/8")
Back and forth adjustment
73mm (2-7/8")
Dust hood diameter
100mm (4")
Packing size:

Crate
84cm x 69cm x 107cm (33" x 27" x 43")
Net weight
115 kgs. (254 lbs.)
Gross weight
165 kgs. (364 lbs.)
Features:

With this Tilting Spindle Shaper you can be sure of always having the horse-power and conveniences whether you are a hobbyist or a commercial wood- worker. You will have the quality and performance. This coupled with our warranty will assure the use of a dependable, accurate, reliable piece of machinery. All controls for this machine have been located in the most desirable position for operator convenience and safety. The use of magnetic overload protection to completely protect our electric have been installed as just another safety feature.

Spindle tilt 30 degrees for various patterns

Accepts 1/2" and 1/4" shank router bits

STANDART EQUIPMENTS:

1" spindle with spacers
Adjustable fence
T-slot miter gauge
Cutter guard and dust chute
Table insert
Magnetic overload protection


OPTIONAL ACCESSORIES:

3/4" spindle with spacers
1/2" spindle with spacers
1/2" router bit collet with spacers
1/4" router bit collet with spacers


Sliding table Model SK-28901

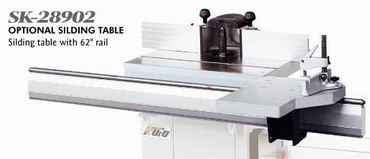

Sliding table Model SK-28902
Length of travel
510mm(20-1/2")

1250mm(49-1/2")
Rail Length
800mm(31-1/2")

1590mm(62-1/2")
