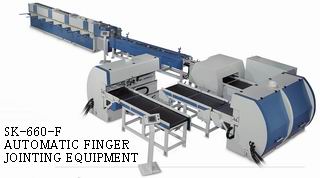

Automatic Finger Jointing Equipment

SK-660-F

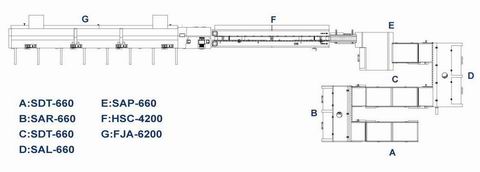

A.C INFEED TABLE CONVEYOR

• Table Size: W 660 X L 900 & 2000mm

B.D FINGER JOINTER SHAPER MACHINE - R-L

• Table Size: W 600 X L 800mm
• Working Dimension : L 150 ~ 800 X T 15 ~ 150mm
• Cycle Speed Package/min: 3 ~ 6 time/min

E BUFFER ZONE

• Table Size: W 600 X L 900mm

F High Speed Chain Conveyor

• Working Dimension: W 150 X T 75mm
• Chain Conveyor Length: 4200mm
• Feeding Speed: 75 M/min

G Auto Finger Jointing Assebly Press

• Working Dimension: L 6200 X W 150 X T 75mm
• Capacity/min 4 ~ 8

FEATURES

• The tables movement are driven by hydraulic power.
• Table feed speed is adjustable with extremely smooth motion
• Table moves on japan-imporbed high precision linear guide ways.
• Trimming saw blades are driven by motors to ensure accurate cutting.
• The machines are ruggedly constructed.
• All critical parts are heat treated for consistent product quality.
• Equipped with automatic pusher and pre-joint machanism for greatly saving labor requirement while upgrading productivity.
• Programs are controlled by Japanese PLC control.
