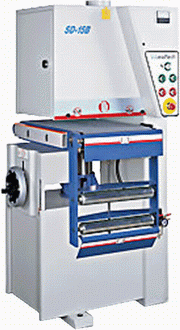

| OPEN-SIDE WIDE BELT
SANDER |
MODEL SD-15B |
 |
The combination head sander can be operated
in three modes: platen up, platen level with the drum or platen down.
|
 |
| Model |
SD-15B
|
| Max. sanding width |
380mm ( 15"
) |
| Min. working length |
300mm |
| Max. working height |
146mm ( 5.7"
) |
| Main motor |
7.5 HP( 3 phase
) |
| Feed
motor |
1/4 HP( 3 phase
) |
| Feed speed |
4M/min, 5M/min |
| Sanding belt size |
406x1220mm ( 16"
x 48" ) |
| Contact Roller
diameter |
100mm ( 4"
) |
| Dust hood outlet |
127mm ( 5"
) x 1 |
| Net weight |
370 kgs |
| Gross weight |
420 kgs |
| Packing size |
900x930x1780 mm |
| |
| SK-2560 |
SK-3775 |
SK-4375 |
SK-5375 |
are
available !!! |
| |
|
|
- Pneumatic Belt Oscillation System Advanced pneumatic
belt tracking system ensures trouble-free operation and long service
life of sanding belt. It also creates a completely flat sanding surface.
|
|
- The sanding belt racking is pneumatically operated.
Distance and speed of swing can be adjusted through one adjustment level.
Trouble-free operation and a long service life of the sanding belt are
ensured.
|
|
- Handwheel Controlling Working Thickness
|
|
- Infeed rollers table and side extension bar.
( Optional )
- Predrilled holes make installation and adjustment
easy when you want to add the optional equipmenst.
|
|
- Emergency stop plate at the front of the conveyor
table.
|
|
- Emergency stop plate at front of the optional infeed
rollers table.
|
|
- The brake stops the sander and the conveyor instantaneously.
|
|
|
|
