GO...GS-Type

Standard Series
Feeding Speed:36m/min

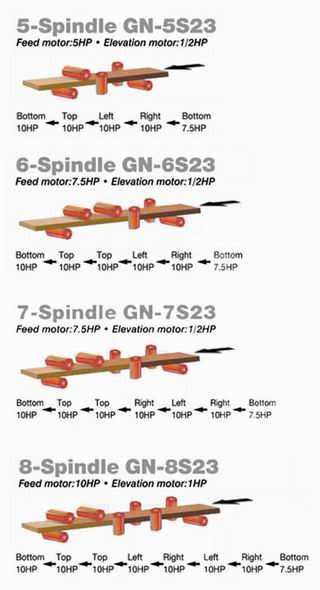

MODEL  GN-5S23 GN-6S23 GN-7S23 GN-8S23
Capacity Planing width (mm)
10~230
Planing thickness (mm)
7~160
Min. working length (mm)
230

Feed speed (m/min) Inverter control

6~36
Spindle Spindle speed (rpm)
6000
Spindle dia.
ø40 mm
Adjustment of vertical spindle
60 mm
Adjustment of horizontal spindle
20 mm
Cutter
Diameter		 Tool cutting circle, 1st Bottom
spindle, min. to max.
ø125-160 mm
Tool cutting circle, vertical
spindles, min. to max.
ø100~180 mm
Tool cutting circle, horizontal
spindles, min. to max.
ø100~200 mm
Tool cutting circle, last bottom
spindle, min. to max.
ø100~250 mm
Motor
Horsepower		 Spindle motor
7.5HP,10HP / 5.6kw , 7.5kw
Feeding motor. Inverter
5HP / 3.75kw
7.5HP / 5.6kw
7.5HP / 5.6kw
7.5HP / 5.6kw
Others Table adjustment (mm)
12
Infeed table length (mm)
1800
Feed roller diameter
ø140mm
ø140mm
ø140mm
ø140mm
Feed roller width
2x50mm
2x50mm
2x50mm
2x50mm
Machine dims. ( L x 1930 x 1803 ) mm
3,658
4,267
4,674
4,978
Packing dims. ( L x 2108 x 2134 ) mm
3,180
4,420
4,826
5,130
Net weight (kgs)
3,600 kgs
4,100 kgs
4,600 kgs
5,000 kgs
Gross weight (kgs)
4,100 kgs
4,700 kgs
5,200 kgs
5,700 kgs

0PTIONAL EQUIPMENTS

Feed Magazine.
• Spindle digital positioning controller.
• Groove guide table.
• CE Specifications.
• ø50mm spindle diameter.
• Spindle speed 8000 RPM.
• ATS Automatic positioning.
• Extend infeed table length.
• Spindle motor increase.
• Universal spindle.



BACK


































































CENTRALIZED PRESSURE REGULATION
All pressure regulations for the entire pneumatic system are centralized at front of the machine for added convenience for pressure regulations.
Sectional pressure adjustments for all pressure rollers ensure consistent pressure.
POWERED INFEED TABLEROLLER
The roller in the infeed table is powered, providing a smooth feeding effect for hard-feeding stock.
VERTICAL SPINDLE ADJUSTMENT UP TO 60 MM
It allows to fit several tools on the vertical spindle, eliminating troublesome cutter change. The 60mm spindle adjustment provides full utilization for a single cutter.
SIDE FRONT PRESSURE PLATE ON LEFT VERTICAL SPINDLE
It fully eliminates unsmooth problem when feeding short or narrow stock.The pressure plate is easy to adjust.
CENTRALIZED LUBRICATION
The spindles are lubricated by the centralized lubrication system for convenience.
SEPARATED MOTOR AND SPINDLE
Separate mounting of motor and spindle eliminates spindle vibration.
Fitted with ahigh speed belt for power transmission, this configuration enables a smooth moulding effect and close tolerance result while in heavy cutting.
VERSATILE REAR BOTTOM HORIZONAL SPINDLE
Can be fitted with sawblade or planer knife. Changing tools is very convenient.
OPTIONAL
UNIVERSAL SPINDLE
This spindle can be tilted for complicated cutting jobs.
FEED MAGAZINE
This mechanism provides maximum convenience for feeding stock into the machine, keeping downtime to the minimum, and increasing the rate of production.
Especially helpful when cutting short stock.
SPINDLE DIGITAL POSITIONING CONTROLLER
Available to equip for controlling any spindle as requested.
The digital positioning controller permits fast, convenient and high accuracy spindle positioning.
