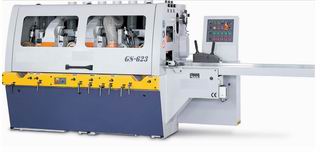

  GO...GN-Type
Economy Series
Feeding Speed:25m/min
|
| |

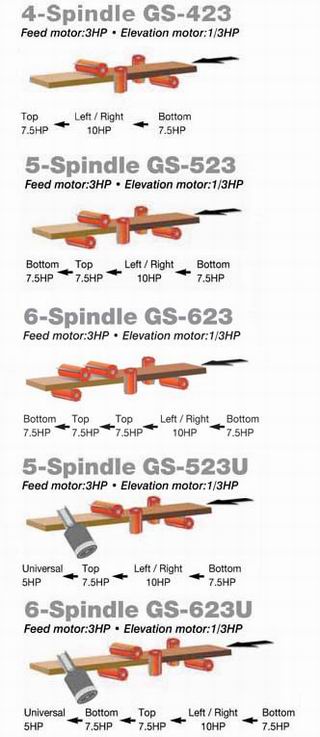

MODEL |
GS-423 |
GS-523 |
GS-623 |
GS-523U |
GS-623U |
| Capacity |
Planing width (mm) |
10~230 |
| Planing thickness (mm) |
7~125 |
| Min. working length (mm) |
230 |
| Feed speed (m/min) |
6~25 |
| Spindle |
Spindle speed (rpm) |
6000 |
| Spindle dia. |
ø40 mm |
| Adjustment of vertical spindle(axial) |
30 mm |
| Adjustment of horizontal spindle(axial) |
20 mm |
Cutter
Diameter |
First bottom horizontal spindle (mm)
|
ø100~150 |
| Right / left vertical spindle |
ø100~180 |
| Top horizontal spindle |
ø100~180 |
| Bottom horizontal spindle (mm) |
– |
ø100~205 |
ø100~205 |
– |
ø100~205 |
| Universal spindle (mm) |
– |
– |
– |
ø100~180 |
ø100~180 |
Motor
Horsepower |
Bottom horizontal spindle |
7.5 HP / 5.6kw |
7.5 HP / 5.6kw |
7.5 HP / 5.6kw |
7.5 HP / 5.6kw |
7.5 HP / 5.6kw |
| Right / Left vertical spindle (1PC) |
10 HP / 7.5kw |
10 HP / 7.5kw |
10 HP / 7.5kw |
10 HP / 7.5kw |
10 HP / 7.5kw |
| Top horizontal spindle |
7.5 HP / 5.6kw |
7.5 HP / 5.6kw |
7.5 HP / 5.6kw |
7.5 HP / 5.6kw |
7.5 HP / 5.6kw |
| Bottom horizontal spindle |
– |
7.5 HP / 5.6kw |
7.5 HP / 5.6kw |
– |
7.5 HP / 5.6kw |
| Universal spindle |
– |
– |
– |
5 HP |
5 HP |
| Feed horsepower |
3 HP / 2.2kw |
3 HP / 2.2kw |
3 HP / 2.2kw |
3 HP / 2.2kw |
3 HP / 2.2kw |
| Elevate horsepower |
1/3 HP / 0.25kw |
1/3 HP / 0.25kw |
1/3 HP / 0.25kw |
1/3 HP / 0.25kw |
1/3 HP / 0.25kw |
| Others |
Table adjustment (mm) |
12 |
| Infeed table length (mm) |
2000 |
| Machine dims. (L x W x 1727 ) mm |
|
|
|
|
|
| Packing dims. (L x W x 1981 ) mm |
2235 x 1422 |
2337 x 1422 |
3048 x
1422 |
3277 x 1803 |
3429 x 1803 |
| Net weight (kgs) |
|
|
|
|
|
| Gross weight (kgs) |
|
|
|
|
|
|
0PTIONAL EQUIPMENT:
Feeding Magazine.
• Spindle digital positioning controller.
• Groove guide table.
• Spindle speed 8000 RPM.
• Auxiliary feed roller for short workpiece.
• Extend infeed table length.
• Spindle motor increase.
• Tool radius display counter.
• Pressure board before top spindle, air pressure.
• Top spindle front/rear press board up-down
digital readout.
• CE certification.
NEXT PAGE
|
|
CONVENIENT INFEED ADJUSTMENT
The infeed table and fence are conveniently adjusted by the separate control
levers.
OVER HEIGHT PROTECTION
In case workpiece exceeds the rated maximum height, it will be restricted
by the over height protection device provided at the workpiece infeed end.
|
 |
FRONT AND REAR PRESSURE PLATE
The front pressure plate features "draw - back" performance, which
fully avoid damage on cutters caused by an over - height workpiece.
The rear pressure plate provides extremely uniform holding pressure for
outstanding parallelism accuracy of machining.
|
 |
SIDE FRONT PRESSURE PLATE ON LEFT VERTICAL SPINDLE
It fully eliminates unsmooth problem when feeding short or narrow stock.The
pressure plate is easy to adjust.
|
 |
CONVENIENT SPINDLE ADJUSTMENT
All control levers for the spindles are located at the front of the machine
for convenient adjustment. Each spindle is provided with a mechanical digital
readout, giving accurate adjustment.
|
| OPTIONAL |
 |
UNIVERSAL SPINDLE
This spindle can be tilted for complicated cutting jobs.
|
 |
FEED MAGAZINE
This mechanism provides maximum convenience for feeding stock into the machine,
keeping downtime to the minimum, and increasing the rate of production.
Especially helpful when cutting short stock.
|
 |
ADJUSTABLE SHORT STOCK PRESSURE ROLLER
The pressure roller for short stock can be fast raised, providing maximum
convenience while in cutter changing or setup.
|
