DOUBLE ENDED CIRCULAR SAWING MACHINE

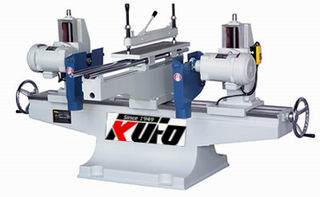

  1. The picture shown is a manual model.
  2. Sawblades are equipped at both ends for cutting wood to size
  3. Cutting length up to 8 feet.
  4. Two rails configuration. Round rod slideways ensure extremely smooth feed motion and accurate cutting.
  5. When requested, a manually-controlled air clamp is available for operational convenience. (optional)
  6. A custom model with over 8 feet capacity is available.
  7. Variable feed speed makes the machine ideal for cutting various soft and hard wood materials.


MODEL SK-422R SK-622RT SK-822RT
Processing width 250-1220mm 500-1850mm 500-2440mm
Processing width 580mm
sawblade diameter (optional) 10"~14"(ø25.4mm)
Tilting degree of sawblade and moulding spindle 360˘FX
Turning speed of circular sawing blade 3300~3650R.P.M. 50~60Hz
No. of rails 1set 2set
Motor of circular sawing blande
2HPx2
N.W./G.W. 550/670kg 750/950kg 980/1140kg
Machine size 2230x1360x1100mm 2950x1360x1100mm 3450x1360x1100mm
Packing size 2050x970x1400mm 2820x790x1400mm 3500x790x1400mm
