SK-424AR  Double Ended Circular Sawing With Vertical Shaft Machine

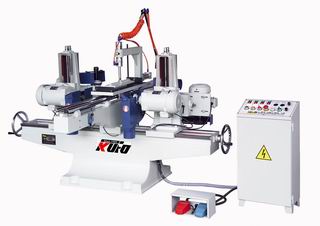

  1. The picture shown is an automatic model.
  2. Sawblades and molder cutters are equipped at both ends providing trimming, size cutting, molding and tenoning operations-all quickly done in a single pass.
  3. Standard models provide 4~8 feet length capacity to choose from. A custom model with over 8 feet capacity is available.
  4. Separately mounted control box allows for moving into any position as desired.
  5. Foot switch facilitates operational control. Feed speed is micrometrically adjusted.
  6. Sawblades, cutting tools, automatic workpiece outfeed and manually operated air clamp cylinder are optional equipment.
  7. Two rails configuration for models with over 4 feet cutting length increases cutting stability and accuracy.


Processing Length 230~1220mm 500~1850mm 500~2440mm
Processing Width  580mm
Sawblade diameter (optional) 250mm(10")10~14
Tilting degree of sawblade and moulding spindle 360X
Turning speed of circular sawing blade 3000~3300R.P.M, 50~60Hz
No. of rails 1set 2set 2set
Motor of circular sawing blande 2HPx2
Vertical shaft motor 3HPx2
Diameter of vertical shaft p30mm(Standard specification)
Turning speed vertical shaft 6600~7200R.P.M. 50~60Hz
N.W./G.W. 700/850kg 950/1150kg 1100/1300kg
Machine size 2230x1920x1200mm 2950x1920x1200mm 3450x1920x1200mm
Shipping size 2060x1120x1400mm 2820x1100x1400mm 3500x1100x1400mm
