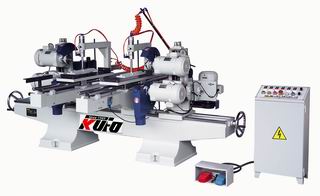

SK-626-ART  Double ended upper & lower circular sawing with vertical shaft machine

  1. Each end is equipped with upper and lower sawblands, providing trimming and size cutting function with burr-free effect.
  2.  Upper and lower sawblades and molder cutters are equipped at both ends, providing cutting off, trimming and molding operations quickly and efficiently in a single pass.
  3. Two rails configuration for models with over 4 feet cutting length increases cutting stability and accuracy.
  4. Standard models provide 4~8 feet length capacity to choose from. A custom model with over 8 feet capacity is available.
  5. Separately mounted control box allows for moving into and position as desired.
  6. When requested, a manually-controlled air clamp is available for operational convenience.



MODEL (With vertical shaft) SK-426AR SK-626ART SK-826ART
MODEL (Without vertical shaft) SK-424ARC SK-624ARCT SK-824ARCT
Processing Length 230~1220mm 500~1850mm 500~2440mm
Processing Width  580mm
Sawblade diameter (optional) 10¡¨~14¡¨(£p25.4mm)
Tilting degree of sawblade and moulding  spindle 360¢X
Turning speed of circular sawing blade 3000~3300R.P.M, 50~60Hz
No. of rails 1set 2set 2set
Motor of circular sawing blande 2HPx4
Vertical shaft motor 3HPx2
Diameter of vertical shaft £p30mm(Standard specification)
Turning speed vertical shaft 6600~7200R.P.M, 50~60Hz
N.W./G.W. 820/970kg 1070/1270kg 1220/1420kg
Machine size 2230x1920x1200mm 2950x2200x1200mm 3450x2200x1200mm
Shipping size 2150x1120x1400mm 2820x1120x1400mm 3520x1120x1400mm
